Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord

Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord

Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord
Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord

Large Image :  Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rosenberger
Certification: ROHS
Model Number: RQC
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: Neutral packing
Delivery Time: 6-8working days
Payment Terms: T/T, Western Union,Paypal
Detailed Product Description
Connector: Rosenberger Model: SM Or MM
Fiber Count: 4
High Light:

IEC 60529 Optic Patch Cord

,

OM4 Fiber Optic Patch Cord

,

APC Fiber Optic Patch Cord

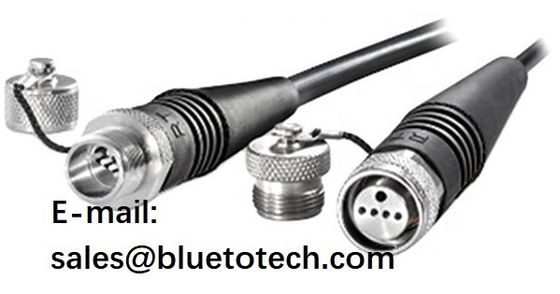

Rosenberger RQC Quad Connector 4 Core for Waterproof Fiber Optical Patch cable



Using as flexible connection joint in fiber optic network, where there is device with a fiber optic interface installed in outdoor or harsh environment. Typical is for mobile communication (FTTA), broadcast, smart-grid cabling application.



Standard IEC 61753-1 Cat. E
Housing Material Nickel-plated brass
Ferrule Material Zirconia ceramic
Operating Temperture -40°C~+125°C (dependent on cable type)
Imgress Protection IP67 (IEC 60529)
Mechnical Resistance >600N
Mating Cycles ≥1000
Suitable Cable (mm) D4-D7 (Mini) breakout or D1.7 Simplex cable
Fiber Types SM, OM1, OM2, OM3, OM4
2011/65 /EU(RoHs) Compliant



Features:

•4 fibers connector
•Support singlemode and multimode
•Robust connector system with screwed locking mechanism
•Components of the N coaxial connector according to MILPRF-39012 enable a conversion
•With the standard panel cutout, the receptacle can easily replace a coaxial connector type
•Mated or with attached protection cap, plug and receptacle are sealed according to IEC 60529 IP67
•Captive protection cap, plastic dust cap and metal cap without rope are available
•PC and APC are available
•Cable connector (male/female) and flange connector (female) are available



Images:

Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord 0Outdoor APC OM4 IEC 60529 4 Core Fiber Optic Patch Cord 1
