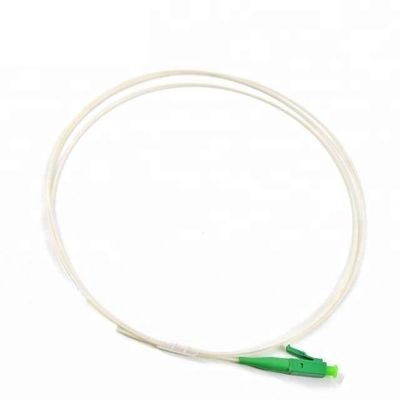

LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV

LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV

LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV
LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV

Large Image :  LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV Get Best Price

Product Details:
Place of Origin: China
Brand Name: Blueto
Certification: CE/ROHS/ISO9001
Model Number: LC/APC SM simplex
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Neutral packing
Delivery Time: 3-5workig days
Payment Terms: T/T, Western Union
Supply Ability: 15000 Pieces per week
Detailed Product Description
Cable Color: White Fiber Count: 1
Conector Type: UPC Or APC Fiber Type: SM Or MM
Connector Model: SC ,ST,FC,LC,etc
High Light:

pigtail fiber optic cable

,

fiber optic ferrule

Fiber opticLC/APC Singmodel simplex pigtails

Features:

Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability

Good in repeatability and exchangeability.

Application:

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication



Technical index
ITEM
PARAMETER
Connector type
LC/UPC(APC),SC/UPC(APC), FC/UPC(APC), ST/UPC. Optional
Fiber mode
Single-mode, G.652.D
Operating wavelength
1310, 1550nm
Test wavelength
1310,1550nm
Insertion Loss
<=0.2db(PC & UPC) <=0.3db (APC)
Return Loss
>=50db(PC & UPC). >=60Db (APC)
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m,2m..... any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C





LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV 0



LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV 1

LC / APC Single Mode Pigtail Fiber Optic For Optical Fiber CATV 2
