Product Details:
Payment & Shipping Terms:
|
| Cable Jacket: | LSZH | Cable Color: | Black |
|---|---|---|---|
| Fiber Type: | SM Or MM | Fiber Count: | 2/4 |
| Connector Option: | LC | Connector Type: | UPC Or APC |
| Connector Housing: | ODVA | Length: | Custom Specified |
| Sheath Material:: | LSZH , OFNR, PE,TPU,custom Specific | Cable Diameter: | 5mm,7mm |
| High Light: | LC Duplex Fiber Optic Patch Cable,FTTA Fiber Optic Patch Cable,ODVA Fiber Optic Patch Cable |
||

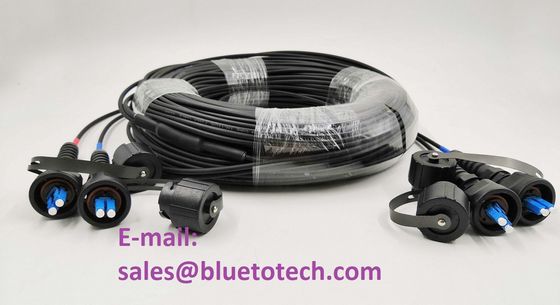

FTTA Outdoor 2core 4core ODVA LC duplex fiber opitc patch cable RRU(RRH)
Description:
FTTA outdoor fiber patch cord CPRI available in 2 core and 4 core combinations can carry control or message signals with minimum loss. FTTA outdoor fiber patch cord is designed for the quick and iterative distributing & retrieving under harsh environment. CPRI FTTA cable is can armored with SUS flexible spring tube, portable, flexible, oil-resistant, rubbing-resistant, flame retardant, high tension load and wide operating temperature range. Its applications include quickdeployment, military, mining, oil field, TV broadcasting, and communication emergency repair.Ideal for outside cabling application-Armored steel tape for rodent resistance-Pressure resistance-Fully water-blocked-Moisture blocking loose tubes-Fiber 2 core or 4 core Easy Operation, reliable and cost-effective.
| Item | Parameter |
| Connector Type | ODVA/LC ,DLC |
| SMFiber Type | SM 1310/1550 or MM 850/1300 |
| Insertion Loss | SM ≤0.2dB MM ≤0.2dB |
| Return Loss | SM ≥50dB MM ≥35dB |
| Repeatability | ≤0.1 |
| Interchangeability | ≤0.2dB |
| Durability | ≤0.2dB |
| Length and tolerance | +10cm |
| Operating Temperature | -45~85℃ |
| Storage Temperature | -45~85℃ |
