Product Details:
Payment & Shipping Terms:
|
| Rate: | 40G | Form Factor: | QSFP28 |
|---|---|---|---|
| Model: | FTL410QE3C-KR | Wavelength: | 850nm |
| Distance: | 150m | Fiber Type: | MMF |
| Power Supply: | 3.3V | Connector: | MPO |
| Module Type: | Pluggable | Warranty: | 1 Year |
| High Light: | 150M 850nm Optical Transceiver Module,MMF Fiber Optical Transceiver Module,Optical Transceiver Module FTL410QE3C-KR |
||

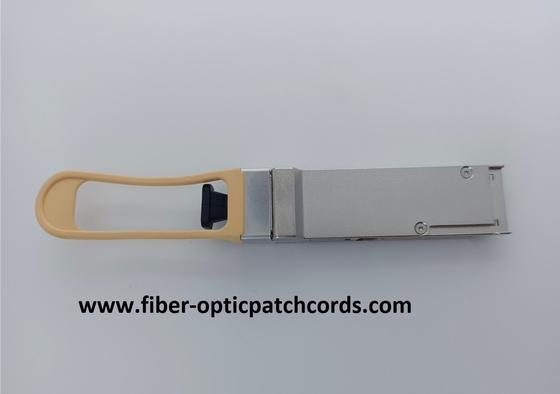

Finisar Brand FTL410QE3C-KR 40BASE-SR4 QSFP+Gen3 Optical Transceiver Modu 150M 850nm 40G SR4 MMF
Specifications
● Four-channel full-duplex transceiver module
● Hot Pluggable QSFP+ form factor
● Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
● Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
● Unretimed XLPPI electrical interface
● Max power dissipation <1.2W
● Reliable VCSEL array technology
● Built-in digital diagnostic functions, including optical power monitoring
● Commercial operating case temperature range: 0ºC to 70ºC
● Single 1x12 MPO receptacle
● RoHS-6 Compliant
Features
| Brand | Finisar |
| Place of origin | Malaysia |
| Form Factor | QSFP+ |
| Wavelength: | 850nm |
| Distance | 150m |
| Data Rate (max) | 40Gb/s |
| Low End Case Temperature (°C) | 0°C |
| High End Case Temperature (°C) | 70°C |
| Diagnostics | Digital |
| Transmitter | VCSEL |
| Receiver | PIN |
| Voltage Supply | 3.3--5v |
| Connector | MPO |
| Warranty | 1 year |
| DDMI | Yes |
