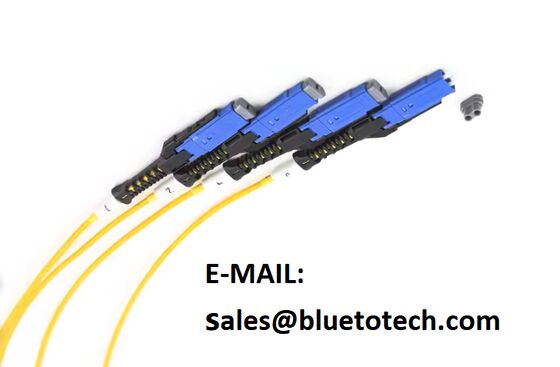

MPO/APC to MDC/UPC 8Core Single Model Fiber Optic Trunk Cable Fiber Optic Patch Cord 8fiber MPo to MDC SM
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cable Materila: | OFNP | Fiber Count: | 8 |
|---|---|---|---|
| Model: | SM | MTP Connector Color: | Yellow |
| MDC Connector Color: | Blue | Cable Diameter: | 3mm |
| Cable Color: | Yellow |
MPO/APC to MDC/UPC 8Core Single Model Fiber Optic Trunk Cable Fiber Optic Patch Cord 8fiber MPo to MDC SM
MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. It is used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores
Features:
● Low Insertion loss;
● Low PDL;
● Compact Design;
● Good channel-to-channel uniformity;
● Wide Operating Temperature:From -40℃ to 85℃;
● High Reliability and Stability.
Parameters:
| Model | Single Mode | Multi Mode |
| Fiber Count | 8/12/24 cores | |
| Polish | UPC /APC | |
| Housing Colors | Standard (green),Elite (Yellow) | Standard(Beige)Elite(Auqa) |
| Insertion Loss Standard Type | ≤0.7dB | ≤0.5dB |
| Insertion Loss Elite Type | ≤0.35dB | ≤0.3dB |
| Return Loss | UPC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | ≤0.2dB | |
| Test Wavelength | 1310/1550nm | 850/1300nm |
Images:
