MPO to LC uniboot 8core OM3 Fiber Optic Patch Cord MTP to LC uniboot 8fiber OM3 Fiber Optic Trunk Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Fiber Count: | 8 | Model: | Multi Mode |
|---|---|---|---|
| MPO/MTP Connector Color: | Aqua | LC Uniboot Connector Color: | Aqua |
| Cable Diameter: | 3mm | Cable Color: | Aqua |
| Cable Materila: | LSZH |

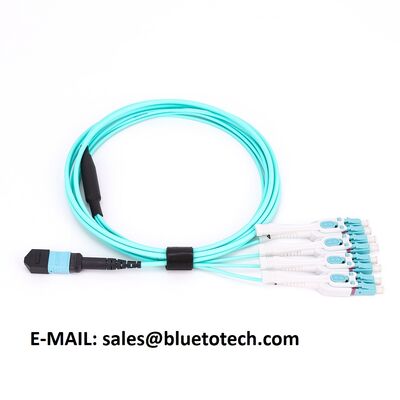

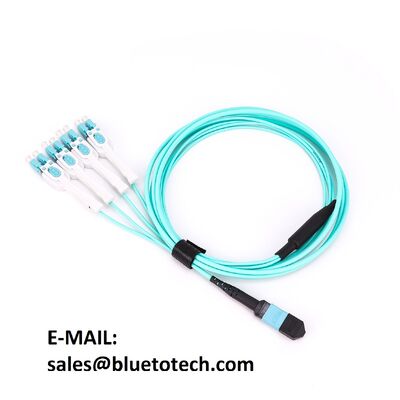

MPO to LC uniboot 8core OM3 Fiber Optic Patch Cord MTP to LC uniboot 8fiber OM3 Fiber Optic Trunk Cable
MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. It is used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores
Features:
● Low Insertion loss;
● Low PDL;
● Compact Design;
● Good channel-to-channel uniformity;
● Wide Operating Temperature:From -40℃ to 85℃;
● High Reliability and Stability.
Parameters:
| Model | Single Mode | Multi Mode |
| Fiber Count | 8/12/24 cores | |
| Polish | UPC /APC | |
| Housing Colors | Standard (green),Elite (Yellow) | Standard(Beige)Elite(Auqa) |
| Insertion Loss Standard Type | ≤0.7dB | ≤0.5dB |
| Insertion Loss Elite Type | ≤0.35dB | ≤0.3dB |
| Return Loss | UPC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | ≤0.2dB | |
| Test Wavelength | 1310/1550nm | 850/1300nm |
Images:
