FC In line MVOA attenuator High precision Fiber Optic Cable Connectors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Connector: | FC | Mode: | SM |
|---|---|---|---|
| Cable Color: | Yellow | ||
| Highlight: | fiber optic attenuator multimode,fixed optical attenuator |
||

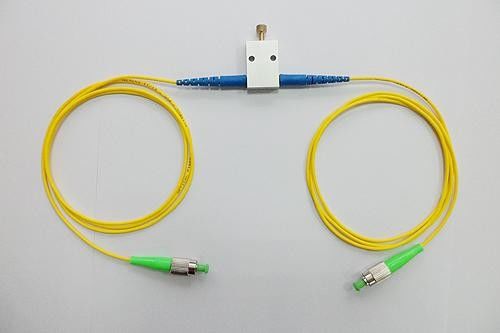

High precision Fiber Optic Cable Connectors , FC In line MVOA attenuator
Features
Low original loss
High precision
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC … optional
Plastic or metal housing material
Application
Optical passive component test
Fiber optic Systems Testing,
Fiber optic telecommunication system,
Optics lab use,
CATV
Performance:
| Parameters | Unit | Specification |
| Operating Wavelength | nm | 1310/1550 |
| Attenuation range | dB | 1-60DB |
| Return Loss | dB | UPC: ≥50 APC: ≥60 |
| Attenuation Precision | dB | ≤±0.5dB (1-10dB); ≤±1.0dB (11-30dB) |
| Operation Temperature | ℃ | -25℃~+75℃ |
| Storage Temperature | ℃ | -40℃~+ 85℃ |
Images:
