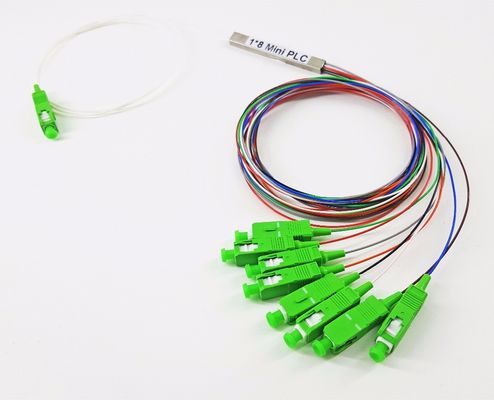

High Stability Fiber Optic PLC Splitter 1*8 Mini Tube Coupler

China High Stability Fiber Optic PLC Splitter 1*8 Mini Tube Coupler supplier

Large Image :  High Stability Fiber Optic PLC Splitter 1*8 Mini Tube Coupler

Product Details:

Place of Origin: China
Brand Name: Blueto
Certification: CE/ROHS/ISO9001
Model Number: PLC SC/APC

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: CE/ROHS/ISO9001
Packaging Details: Neutral packing
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Model: PLC Connector: SC/APC
Input&output: 1x8 Compact: Mini Tube

Fiber Optic PLC splitter 1x8 mini tube, optical fiber PLC 1*8 minit tube coupler





Description

Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirement



Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength:From 1260nm to 1650nm
  • Wide Operating Temperature:From -40℃ to 85℃
  • High Reliability and Stability

Applications

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution



Compliance

  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE
  • RoHS



Specifications



Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 17/17.4 20./20.4 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Stability (-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4 N/A
Module Dimension (mm) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18 140×115×18
Mini-Module Dimension (mm) 50×7×4 50×7×4 50×7×4 60×12×4 80×20×6 100×40×6 N/A




Notes:

1. Specified without connectors.

2. Add an additional 0.15dB loss per connector.
