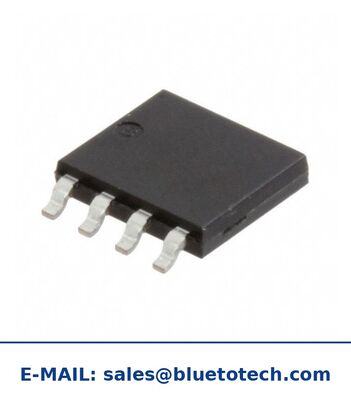

Nexperia BUK7K6R8-40E Dual N-Channel Power MOSFET 40V 40A LFPAK56D for Motor Drive
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Manufacturer: | Nexperia | Part Number: | BUK7K6R8-40E |
|---|---|---|---|
| Channel Type: | Dual N-Channel | Package / Case: | LFPAK56D (SOT-1205), 8 Pin |
| Drain-Source Voltage (VDS): | 40 V | Continuous Drain Current (ID): | 40 A |
| RDS(on) At VGS = 10 V: | 5.8 MOhm Typical | Gate Threshold Voltage (VGS(th)): | 3 V Typical |
| Power Dissipation (Pd): | 64 W | Operating Temperature: | -55 C To +175 C |
| Moisture Sensitivity Level: | MSL 1 | Mounting Type: | Surface Mount |
| Date Code: | 26+ | Stock Status: | In Stock |
| Highlight: | 40V Power MOSFET,40A Dual N-Channel MOSFET,LFPAK56D Power MOSFET |
||
BUK7K6R8-40E dual N-channel 40 V power MOSFET in LFPAK56D · E-MAIL: sales@bluetotech.com
Dual N-Channel 40 V MOSFET for Compact, Low-Loss Power Design
The BUK7K6R8-40E is a dual N-channel 40 V power MOSFET from Nexperia, supplied in the LFPAK56D (SOT-1205) loss-free package. Two matched N-channel die share one 5 x 6 mm surface-mount footprint, so a synchronous buck stage, half bridge or load switch that normally needs two DPAK devices can be built with a single reel of parts.
A typical on-resistance of 5.8 mΩ at VGS = 10 V and a continuous drain current of 40 A keep conduction losses low, while 64 W power dissipation and a -55 °C to +175 °C junction temperature range leave real thermal headroom for enclosed and automotive-style housings.
Key Features
- Dual N-channel 40 V MOSFETs in one LFPAK56D (SOT-1205) package
- Typical RDS(on) 5.8 mΩ at VGS = 10 V, gate threshold 3 V typical
- 40 A continuous drain current and 64 W power dissipation
- Wire-bond free LFPAK construction for low inductance and high ruggedness
- Operating junction temperature -55 °C to +175 °C
- MSL 1, RoHS and REACH compliant, surface-mount assembly friendly
Technical Specifications
| Manufacturer | Nexperia |
| Part Number | BUK7K6R8-40E (BUK7K6R8-40E,115) |
| Channel Type | Dual N-Channel |
| Drain-Source Voltage (VDS) | 40 V |
| Continuous Drain Current (ID) | 40 A |
| RDS(on) at VGS = 10 V | 5.8 mΩ typical |
| Gate Threshold Voltage (VGS(th)) | 3 V typical |
| Power Dissipation (Pd) | 64 W |
| Operating Temperature | -55 °C to +175 °C |
| Package / Case | LFPAK56D (SOT-1205), 8 pins, surface mount |
| Moisture Sensitivity Level | MSL 1 |
| Date Code | 26+ |
Typical Applications
Synchronous DC-DC converters and POL modules, half-bridge and motor drive stages, load switching and reverse battery protection, battery management and charger circuits, industrial power supplies, and automotive body, lighting and pump control modules.
Stock, Packing and Quotation
BUK7K6R8-40E is available from stock in original Nexperia packing, with 26+ date codes and full traceability. Parts are shipped in anti-static tubes or tape and reel, sealed with desiccant and a humidity indicator card, then packed in export cartons.
Send your BOM or target quantity and we will confirm price, lead time and shipping cost the same working day. Samples can be arranged for qualification testing.
E-MAIL: sales@bluetotech.com
Please quote part number BUK7K6R8-40E and your required quantity when you inquire.
