16-Bit 100ksps Sampling ADC Analog-to-Digital Converter with Parallel Output
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Manufacturer: | Analog Devices (Linear Technology) | Part Number: | LTC1605IG#PBF |
|---|---|---|---|
| Package / Case: | SSOP-28 | Resolution: | 16 Bit |
| Sampling Rate: | 100 Ksps | Supply Voltage: | Single 5 V |
| Input Range: | Bipolar, Plus Or Minus 10 V | INL: | Plus Or Minus 2.0 LSB Max |
| SNR: | 86 DB Typical | Power Dissipation: | 55 MW Typical |
| Reference: | Internal Or External | Output Interface: | 16-bit Or Two-byte Parallel |
| Date Code: | 23+ | Mounting Type: | Surface Mount |
| Stock Status: | In Stock | ||
| Highlight: | 16-Bit Sampling ADC,100ksps Analog-to-Digital Converter,Parallel Output Sampling ADC |
||

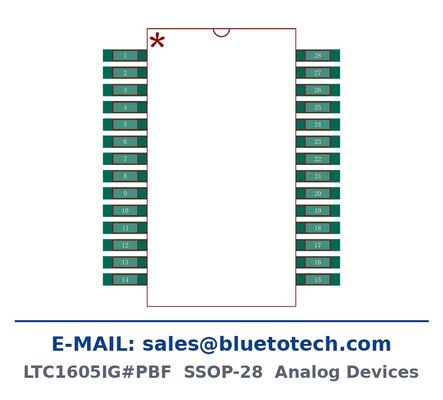

LTC1605IG#PBF 16-bit 100ksps sampling ADC in SSOP-28 · E-MAIL: sales@bluetotech.com
16-Bit, 100ksps Sampling ADC with Bipolar 10V Input
The LTC1605IG#PBF is a 16-bit, 100ksps sampling analog-to-digital converter from Analog Devices (Linear Technology) that runs from a single 5V supply and draws only 55mW typical. Sample-and-hold, precision reference, switched-capacitor successive-approximation converter and trimmed internal clock are all integrated, which keeps the analog front end to one package plus a few decoupling parts.
The input range is the industry standard plus or minus 10V, so industrial sensors, 4-20mA loops with a sense resistor, and bipolar signal chains can connect without extra level shifting. DC accuracy is guaranteed at plus or minus 2.0LSB INL maximum with 16 bits no missing codes over temperature, and 86dB typical SNR covers AC measurement needs.
Key Features
- 16-bit resolution, 100ksps sampling rate, guaranteed no missing codes
- Single 5V supply with only 55mW typical power dissipation
- Bipolar input range of plus or minus 10V
- Integral nonlinearity plus or minus 2.0LSB maximum
- 86dB typical signal-to-noise ratio
- Internal or external reference, internal synchronized clock
- Microprocessor compatible 16-bit or two-byte parallel output with BUSY signal
- 28-pin SSOP package, improved second source to ADS7805 and AD976
Technical Specifications
| Manufacturer | Analog Devices (Linear Technology) |
| Part Number | LTC1605IG#PBF |
| Package / Case | SSOP-28 |
| Resolution | 16 bit |
| Sampling Rate | 100 ksps |
| Supply Voltage | Single 5 V |
| Input Range | Bipolar, plus or minus 10 V |
| Integral Nonlinearity | plus or minus 2.0 LSB max |
| SNR | 86 dB typical |
| Power Dissipation | 55 mW typical |
| Reference | Internal or external |
| Output Interface | 16-bit or two-byte parallel, with BUSY |
| Date Code | 23+ |
| Mounting Type | Surface mount |
Typical Applications
Industrial data acquisition and PLC analog inputs, instrumentation and spectrum analysis, 4-20mA loop receivers, medical and test equipment, power quality and energy monitoring, and any bipolar 10V signal chain that needs a parallel 16-bit converter.
Stock, Packing and Quotation
LTC1605IG#PBF is in stock in original ADI (Linear Technology) packing with 23+ date codes and full traceability. Orders ship in anti-static tubes with desiccant, packed in export cartons.
Send your BOM or target quantity and price, lead time and shipping cost are confirmed the same working day. Samples can be arranged for qualification testing.
E-MAIL: sales@bluetotech.com
Please quote the exact part number and your required quantity when you inquire. Minimum order quantity: 10 pieces.
