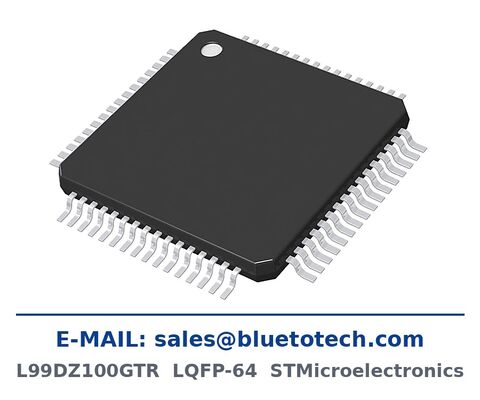

Automotive Door Zone System IC with LIN and HS-CAN

The L99DZ100GTR is a door zone system IC from STMicroelectronics that integrates the power management, the LIN and high-speed CAN physical layers and the output stages of a complete door module in one LQFP-64 device. Two low-drop voltage regulators with multiple standby modes supply the module, while selective wake-up on the CAN bus keeps quiescent current low when the vehicle sleeps.

The output stage covers the actuators found in a modern door: one half bridge rated 7.5 A at 100 mOhm and one at 7.5 A at 150 mOhm for window and lock, two 3 A half bridges at 300 mOhm, two 0.5 A half bridges at 2000 mOhm, plus a configurable high-side driver that delivers up to 1.5 A at 500 mOhm or 0.35 A for small loads. The device is AEC-Q100 qualified and includes full diagnostics for shorts, opens and thermal events.

Key Features

• Door zone system IC integrating power supply, communication and output stages
• Embedded LIN and HS-CAN physical layers, HS-CAN selective wake-up
• Two low-drop voltage regulators with multiple standby modes
• 1 half bridge 7.5 A (100 mOhm) and 1 half bridge 7.5 A (150 mOhm)
• 2 half bridges 3 A (300 mOhm), 2 half bridges 0.5 A (2000 mOhm)
• 1 configurable high-side driver up to 1.5 A (500 mOhm) or 0.35 A
• AEC-Q100 qualified with comprehensive diagnostics
• LQFP-64 package for compact door module PCB layout

Technical Specifications

Typical Applications

Automotive door control modules, body control units with zonal architecture, window lift and central locking, mirror adjustment and fold, door lighting and handle actuators, and any smart door node that needs LIN plus HS-CAN in one IC.
