Automotive Door Actuator Driver with 6 Bridges and 5 High-Side Drivers

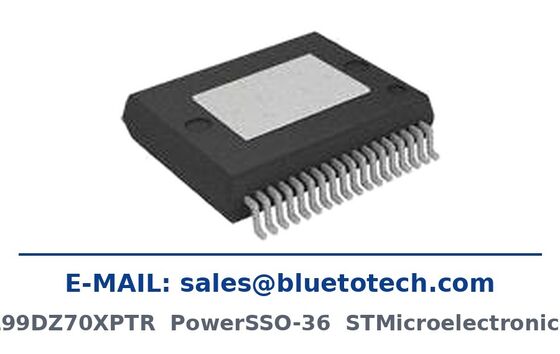

The L99DZ70XPTR is a microcontroller driven multifunctional door actuator driver from STMicroelectronics. Six half bridges and five high-side drivers in one PowerSSO-36 package replace the relay and discrete FET cluster behind a car door, so door lock, mirror fold, mirror axis, window and defroster loads are all driven from a single SPI controlled device.

Up to five DC motors and five grounded resistive loads can be connected at the same time. Bridge ratings are graded to the real loads: one full bridge for 6 A, two half bridges for 3 A and two half bridges for 0.75 A. All operating modes (forward, reverse, brake and high impedance) and all diagnostic information are accessed through the SPI interface, and the integrated electrochromic mirror module drives dimming glass with one external MOS transistor.

Key Features

• Microcontroller driven door actuator driver, SPI control and SPI diagnostics
• 1 full bridge for 6 A load (RDS(on) 150 mOhm)
• 2 half bridges for 3 A load (RDS(on) 300 mOhm), 2 half bridges for 0.75 A (1600 mOhm)
• 1 high-side driver for 6 A (90 mOhm), 2 configurable up to 1.5 A (500 mOhm) or 0.4 A (1800 mOhm)
• 2 high-side drivers for 0.5 A load (1600 mOhm), current monitor output on all high-side drivers
• Separated half bridges for door lock motor, electrochromic mirror glass control module
• Forward, reverse, brake and high impedance modes with full fault reporting
• PowerSSO-36 package, operating range -40 C to +150 C

Technical Specifications

Typical Applications

Automotive door modules, central and door lock actuators, power fold and mirror axis control, mirror defroster and puddle lamp drive, window lift assistance, electrochromic (auto dimming) mirror glass, and other body actuators that need multiple bridges with SPI diagnostics.
