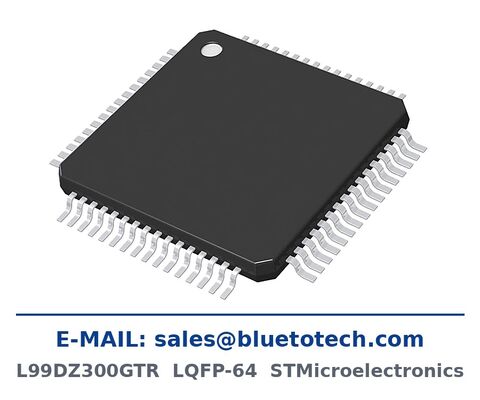

AEC-Q100 Qualified LQFP-64 Automotive Front Door Zone Driver IC with CAN FD and LIN Interface

L99DZ300GTR automotive front door zone driver IC in LQFP-64 · E-MAIL: sales@bluetotech.com

Automotive Front Door Device with CAN FD and LIN

The L99DZ300GTR is the front door counterpart of the STMicroelectronics door zone family: one LQFP-64 device that combines the bus interfaces, the power management and the actuator output stage of a front door module. CAN FD and LIN physical layers are both embedded, so the same hardware serves a zonal gateway node and a conventional LIN door node without a second transceiver on the board.

The output stage is sized for a fully loaded front door. Two large half bridges cover the window lift and the latch, rated 7.5 A at 100 mOhm and 6 A at 150 mOhm, followed by two 3 A half bridges at 300 mOhm and two 0.5 A half bridges at 1600 mOhm for mirror axis, mirror fold and small actuators. A configurable high-side driver delivers up to 1.5 A at 300 mOhm or 0.35 A for lighting and handle loads. The device is AEC-Q100 qualified and reports open load, short circuit and thermal faults to the module controller.

Key Features

• Automotive front door device integrating CAN FD, LIN and the actuator output stage
• 1 half bridge for 7.5 A load (RDS(on) 100 mOhm) and 1 half bridge for 6 A (150 mOhm)
• 2 half bridges for 3 A load (300 mOhm), 2 half bridges for 0.5 A load (1600 mOhm)
• 1 configurable high-side driver up to 1.5 A (300 mOhm) or 0.35 A
• Embedded CAN FD and LIN physical layers for zonal and conventional door nodes
• AEC-Q100 qualified with full diagnostic reporting
• LQFP-64 package for compact front door module layouts
• Covers window lift, latch, mirror fold and mirror axis loads in one device

Technical Specifications

Typical Applications

Front door control modules, zonal body nodes with CAN FD backbone, window lift and latch drive, mirror fold and mirror axis control, door lighting and handle actuators, and platforms migrating from LIN-only doors to CAN FD architecture.
