Automotive 40V 32A H-Bridge Motor Driver IC with SPI Interface and Integrated Current Sensing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Manufacturer: | Texas Instruments | Part Number: | DRV8245SQRXZRQ1 |
|---|---|---|---|
| Package / Case: | VQFN-HR (RXZ) 16, 3.5 X 5.5 Mm | Number Of Full Bridges: | 1 |
| Peak Output Current: | 32 A | RDS(on) HS + LS: | 30 MOhm |
| Supply Voltage (Vs): | 4.5 V To 40 V | Control Interface: | SPI, Hardware (GPIO) |
| Integrated Features: | Current Sensing, Current Regulation, Open-load Detection | Sleep Current: | 5 UA |
| Operating Temperature: | -40 C To +125 C | Qualification: | AEC-Q100 Grade 1, Functional Safety-Capable |
| Date Code: | 26+ | Mounting Type: | Surface Mount |
| Stock Status: | In Stock | ||
| Highlight: | 40V H-Bridge Motor Driver,32A H-Bridge Driver IC,SPI Interface H-Bridge Driver |
||

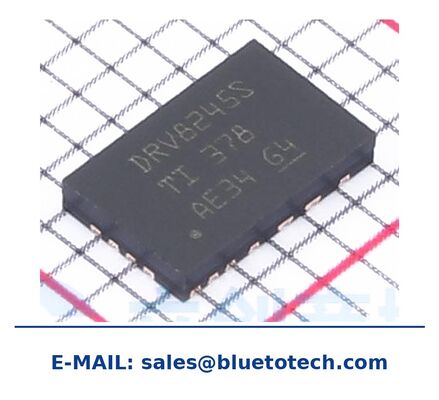

DRV8245SQRXZRQ1 automotive H-bridge driver in VQFN-HR 16 · E-MAIL: sales@bluetotech.com
Automotive 40 V, 32 A H-Bridge Driver with Integrated Current Sensing
The DRV8245SQRXZRQ1 is a Texas Instruments automotive H-bridge driver that integrates the complete power stage, gate driver, charge pump and current sensing into a single VQFN-HR (RXZ) 16 package measuring only 3.5 x 5.5 mm. One device replaces a discrete FET bridge plus shunt amplifier chain, which shortens design time and shrinks board area in body, comfort and pump modules.
The bridge uses 30 mΩ (high-side plus low-side) integrated MOSFETs rated for 4.5 V to 40 V supply and 32 A peak output current, with integrated current sensing and feedback for closed-loop torque control. The SPI variant gives full register access for configuration, diagnostics and fault reporting, and the device is AEC-Q100 grade 1 qualified with Functional Safety-Capable documentation.
Key Features
- Single H-bridge with integrated 30 mΩ high-side plus low-side MOSFETs
- 4.5 V to 40 V supply range, 32 A peak output current
- Integrated current sensing and current regulation, no external shunt needed
- SPI interface with hardware GPIO control modes: PH/EN, PWM, independent half-bridge
- Open-load detection plus full protection set: OCP, OVP, UVLO and thermal shutdown
- AEC-Q100 grade 1 qualified, -40 °C to +125 °C ambient, Functional Safety-Capable
Technical Specifications
| Manufacturer | Texas Instruments |
| Part Number | DRV8245SQRXZRQ1 |
| Package / Case | VQFN-HR (RXZ) 16, 3.5 x 5.5 mm |
| Number of Full Bridges | 1 |
| Peak Output Current | 32 A |
| RDS(on) HS + LS | 30 mΩ |
| Supply Voltage (Vs) | 4.5 V to 40 V |
| Control Interface | SPI, Hardware (GPIO) |
| Key Features | Integrated current sensing, current regulation, open-load detection |
| Sleep Current | 5 µA |
| Operating Temperature | -40 °C to +125 °C |
| Qualification | AEC-Q100 Grade 1, Functional Safety-Capable |
| Date Code | 26+ |
| Mounting Type | Surface mount |
Typical Applications
Automotive body control modules (door, seat, mirror, liftgate), throttle and EGR valve actuators, small pumps and fans, solenoid and valve drivers, stepper and brushed DC motor positioning, and any 12 V automotive load that needs integrated current feedback.
Stock, Packing and Quotation
DRV8245SQRXZRQ1 is in stock in original TI packing with 26+ date codes and full traceability. Orders are shipped in factory reel or anti-static trays with desiccant, then packed in export cartons.
Send your BOM or target quantity and price, lead time and shipping cost are confirmed the same working day. Samples can be arranged for qualification testing.
E-MAIL: sales@bluetotech.com
Please quote the exact part number and your required quantity when you inquire. Minimum order quantity: 10 pieces.
