AEC-Q100 Automotive A2B Audio Bus Transceiver LFCSP-32 with 4xPDM Inputs

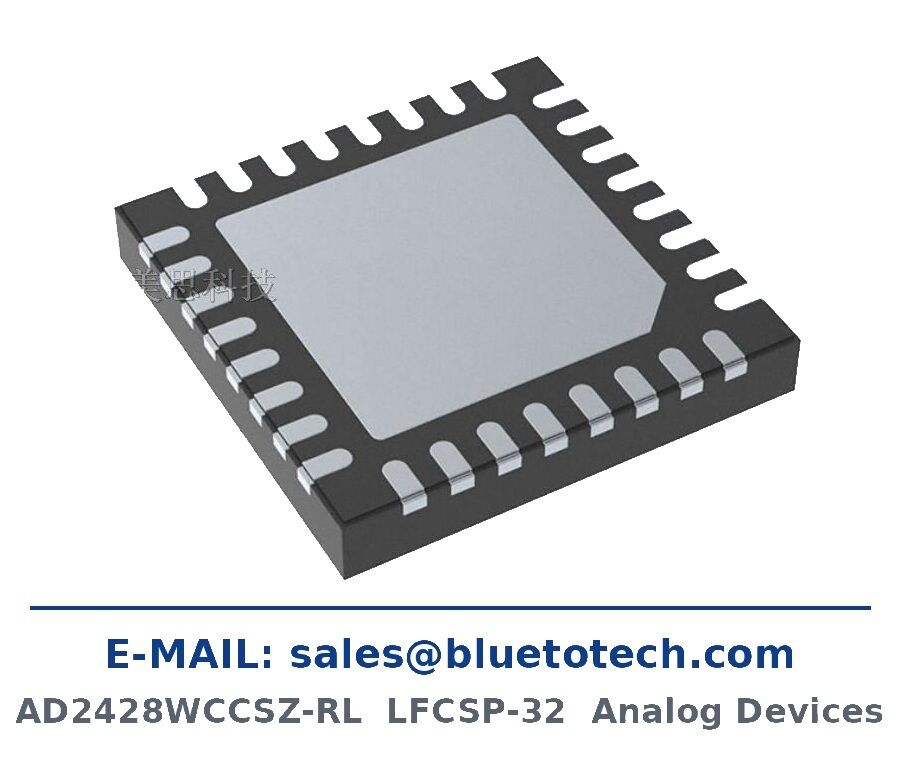

AD2428WCCSZ-RL automotive A2B transceiver in LFCSP-32 · E-MAIL: sales@bluetotech.com

Automotive A2B Audio Bus Transceiver, Main or Subordinate Node

The AD2428WCCSZ-RL is an Analog Devices Automotive Audio Bus (A2B) transceiver that carries multichannel audio, control data and power over a single low-cost unshielded twisted pair. Each device can be configured as the bus main node or as a subordinate node, so one part number covers the whole daisy chain from head unit to the last microphone or speaker node.

The transceiver moves up to 32 upstream and 32 downstream audio channels with an 8-bit to 32-bit multichannel I2S/TDM interface and a programmable data rate. On the upstream side it accepts up to four high dynamic range PDM microphones simultaneously with I2S data, which makes it a natural fit for microphone arrays, active noise cancellation and in-car communication systems built on a line topology of up to 15 m between nodes.

Key Features

• Configurable A2B bus main node or subordinate node, programmable over I2C
• Up to 32 upstream and 32 downstream audio channels
• 8-bit to 32-bit multichannel I2S/TDM interface with programmable data rate
• PDM interface with up to 4 high dynamic range microphone inputs
• Line topology, up to 15 m between nodes and up to 40 m overall cable length
• Synchronous, phase aligned clocks in all nodes with low node to node latency
• Bus power or local power subordinate nodes, GPIO and interrupt support
• AEC-Q100 qualified for automotive applications, LFCSP-32 package

Technical Specifications

Typical Applications

Automotive microphone arrays and hands-free systems, active noise cancellation and road noise cancellation, in-car communication and zonal audio, head units and amplifiers with A2B bus, telematics units, and industrial multi-channel audio links over twisted pair.

Stock, Packing and Quotation

AD2428WCCSZ-RL is in stock in original ADI packing with 2147+ date codes and full traceability. Orders ship in factory reel with desiccant and humidity indicator card, packed in export cartons.

Send your BOM or target quantity and price, lead time and shipping cost are confirmed the same working day. Samples can be arranged for qualification testing.

E-MAIL: sales@bluetotech.com
Please quote the exact part number and your required quantity when you inquire. Minimum order quantity: 10 pieces.
