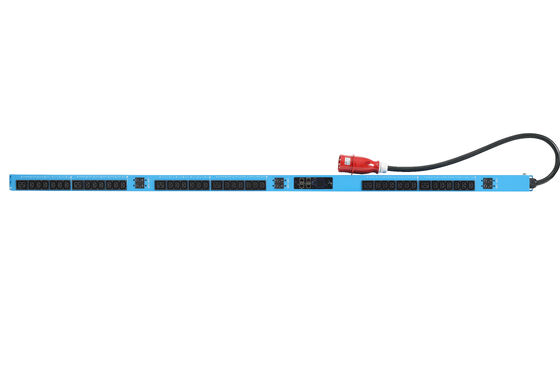

32A 380V 415V Metered Switched PDU 36 C13 6 C19 SNMP Per Outlet Monitoring Rack Mount

32A Metered Switched Rack PDU with Per Outlet Monitoring and SNMP Control

This 380V to 415V three phase 32A rack PDU distributes up to 42 outlets from a single IEC 60309 5G 32A industrial connector. Every outlet is metered and switched individually, so current, voltage, power and energy can be read per port and each device can be powered on, off or rebooted remotely through SNMP, HTTP or Telnet. It is built for server rooms, data centers and telecom cabinets where branch circuit load has to be visible and controllable without sending a technician to site.

Per Outlet Monitoring and Switching

• Outlet level metering — current, voltage, active power, energy and power factor measured at each of the 42 outlets
• Outlet level switching — remote on, off and reboot per port, with sequential power-up to limit inrush current
• SNMP, HTTP and Telnet — integrate into existing DCIM or NMS, trap alerts on overload, over-temperature and outlet failure
• Alarm thresholds — user defined upper and lower limits per outlet and per branch, with event log and history curve
• Local display — blue backlit LCD shows total current, voltage and power without opening a laptop

Power Distribution

• 36 x C13 outlets plus 6 x C19 outlets, 42 outlets in total on a 1U sheet metal chassis
• 6 x 16A circuit breakers protect branch circuits and isolate faults quickly
• 5G x 6 mm² x 3 m power cord with IEC 60309 5G 32A industrial connector
• 380V to 415V three phase input, 32A rated, 50/60 Hz
• Cold rolled sheet metal shell with black powder coating, 19 inch rack mount

Applications

• Data center racks and server cabinets with per device power billing
• Telecom equipment rooms and base station cabinets
• Colocation sites requiring tenant level power measurement
• Broadcast, security and laboratory racks with remote reboot needs

Ordering and Service

Available with 0U vertical or 1U horizontal mounting, custom outlet layout, custom cord length and OEM logo. Each unit is 100% load tested and burned in before packing.

Tell us your outlet layout, input plug type and quantity — we reply within 24 hours with price, drawing and lead time.
