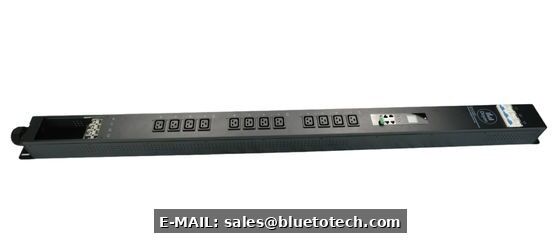

125A Smart Metered Power Distribution Unit with 12 x C19 Outlets, Per Outlet Monitoring and SNMP Remote Switching PDU

380V 415V 125A Smart Metered PDU - 12 x C19 with Per Outlet Monitoring and Switching

Product Pictures

E-MAIL: sales@bluetotech.com

The 12 outlet member of our smart metered PDU series. Same controller, same SNMP visibility as the 160A 24 port model, packaged for smaller mining containers, edge AI racks and single-row colocation cabinets. A 125A 5P terminal box feeds 12 C19 outlets, each with its own 20A hydraulic-magnetic breaker and its own metering channel.

Key Features

• Per outlet monitoring - voltage, current, power, energy and power factor for each of the 12 C19 sockets
• Per outlet remote switching - cycle a single miner or GPU node from the NOC, no site visit
• SNMP protocol - plug into Zabbix, PRTG, Grafana or your DCIM for alarms and power capacity planning

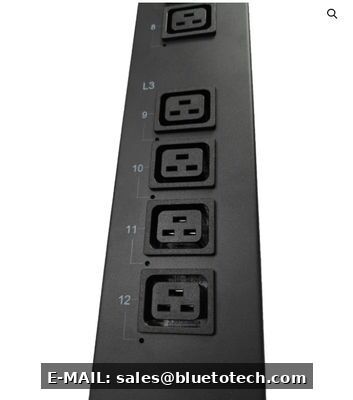

• 12 x C19 outlets (IEC 60320) - 16A/250V sockets for PSU shelves and AI server power cords
• 12 x 20A hydraulic-magnetic breakers - stable trip curve at 45-65 C container ambient, no thermal derating surprises
• 125A 5P terminal box - 3P+N+PE hard-wired input, sized for a 125A three-phase branch
• Sheet metal shell - powder-coated steel chassis with ventilation slots, protects busbars and control board
• Series compatibility - identical controller and SNMP object model as the 160A / 24 port version, one dashboard for the whole farm

Technical Specifications

Typical Application

Small and mid size mining containers, edge AI inference racks and colocation cabinets where a 125A three-phase branch has to be split into 12 monitored C19 feeds with remote reboot capability.

Customization Available

Outlet quantity (6 / 12 / 18 / 24), current rating (63A / 125A / 160A), breaker brand, metering level and communication options (SNMP / Modbus TCP / RS485) are customizable. Ask us for the full series datasheet.

For pricing and datasheet, please contact us: E-MAIL: sales@bluetotech.com
