250A Miner PDU Power Distribution Unit with 24 x P34 Outlets, 8 x 3P 40A Breakers and 250A 5P Terminal Box

380V 415V 250A Miner PDU - 24 x P34 with 8 Three Pole 40A Breakers

The top of our miner PDU range: a 250A three-phase unit that takes one 380V-415V feed through a 250A 5P terminal box and delivers 24 P34 outlets arranged in 8 protected groups, each group behind its own 3P 40A circuit breaker. Built for containers and AI halls where a single feed has to carry an entire rack row.

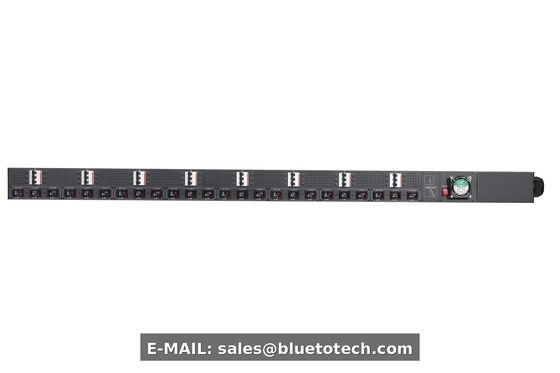

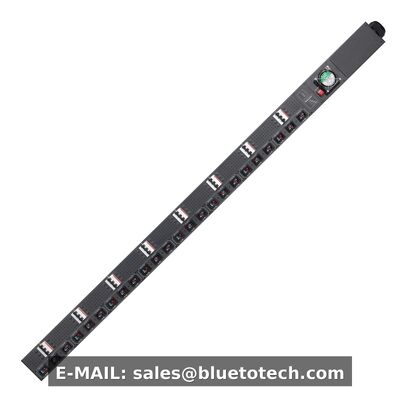

Product Pictures

Why 250A Miner PDU

250A per phase capacity. Enough headroom for 24 high current P34 loads running continuously, with margin left for PSU inrush at cold start instead of running the branch at its limit.

8 x 3P 40A breakers, group protection. Every three P34 outlets sit behind one three-pole 40A breaker, so a faulted group isolates itself and the remaining 21 outlets keep hashing.

250A 5P terminal box input. Three phase plus neutral and ground, hard-wired with lugs - no industrial plug in the current path, lower contact resistance and less heat at full load.

Sheet metal shell. Powder-coated steel chassis with ventilation slots, rigid for container transport and shielding busbar and wiring from dust and impact.

Phase-balanced layout. Outlet groups distributed across L1 / L2 / L3 to keep phase imbalance low on 380V and 415V supplies.

Technical Specifications

Typical Application

High density mining containers, immersion cooling rows and AI training clusters that need 24 high current outlets from one 250A feed, with group level breaker protection instead of a single main breaker.

Customization Available

Outlet type and quantity (P34 / C19 / C13), current rating (160A / 250A / 400A), breaker rating and brand, metering or SNMP monitoring options, and shell dimensions can be customized. Send your single-line diagram for a matching quotation.
