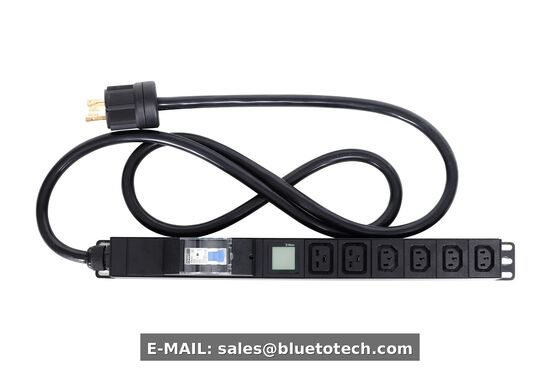

32A Single Phase Rack PDU Power Distribution Unit with Mini Meter, 32A Circuit Breaker and 4 x C13 + 2 x C19 Outlets

32A Single Phase PDU - 4 x C13 + 2 x C19 with Mini Meter and L6-30P Plug

A compact single phase distribution strip for racks that need a few high current outlets with local metering. One 32A breaker protects the strip, a mini current and voltage meter shows the load at a glance, and the unit is fed by a 10AWG x 2m power cord with L6-30P plug - ready to plug into a standard 30A twist lock receptacle.

Product Pictures

Key Features

4 x C13 + 2 x C19 outlets. Four C13 sockets for servers, switches and network gear plus two C19 sockets for PSU shelves, UPS units and blade chassis - six loads from one 32A feed.

Mini current and voltage meter. Local LED display shows live current and voltage, so an overloaded branch is spotted while standing at the rack instead of hunting through a DCIM dashboard.

32A circuit breaker. Single pole breaker protects the whole strip and doubles as a service disconnect for maintenance.

10AWG x 2m cord with L6-30P plug. Heavy gauge conductors keep voltage drop low at full 32A, and the NEMA L6-30P twist lock plug resists accidental disconnection.

Compact strip format. Narrow chassis fits behind or beside rack equipment, with outlets spaced for standard IEC cords and C19 connectors.

Technical Specifications

Typical Application

Single rack deployments, edge and micro data centers, AI inference nodes and lab test benches that need metered 32A distribution without a full three phase PDU.

Customization Available

Outlet combination (C13 / C19 count), cord length, plug type (L6-30P / L6-20P / C20), breaker rating, meter type and mounting brackets can be customized. Ask us for the matching configuration.

For pricing and datasheet: E-MAIL: sales@bluetotech.com
