160A Smart Metered Power Distribution Unit with Per Outlet Monitoring and SNMP Remote Switching for 24 x C19 Outlets
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Voltage: | 380V - 415V Three Phase | Rated Current: | 160A Per Phase |
|---|---|---|---|
| Outlets: | 24 X C19 | Metering: | MPDU Meter Head, Per Outlet Monitoring |
| Switching: | Per Outlet Remote On/off | Communication: | SNMP (RJ45) |
| Branch Breakers: | 24 X 20A Hydraulic Magnetic | Input Connection: | 160A 5P Terminal Box |
| Shell Material: | Sheet Metal | Frequency: | 50/60Hz |
| Application: | Crypto Mining Farm, AI Data Center | ||
| Highlight: | Per Outlet Monitoring PDU,SNMP Remote Switching PDU,24 x C19 Outlets Power Distribution Unit |
||
380V 415V 160A Smart Metered PDU - 24 x C19 with Per Outlet Monitoring and Switching

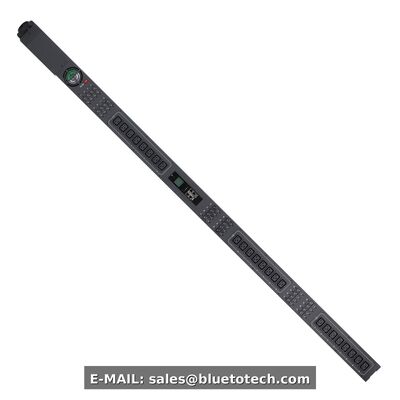

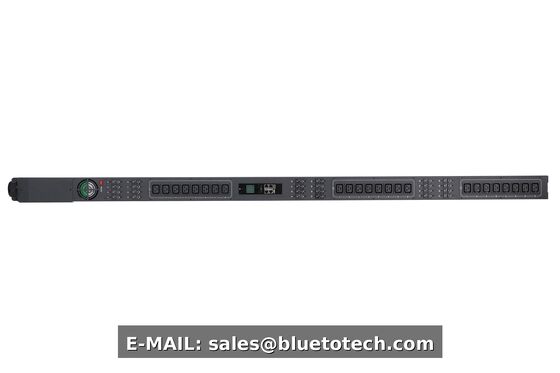

Product Pictures
E-MAIL: sales@bluetotech.com
This 160A three-phase smart PDU is built for the two loads that matter in 2026: cryptocurrency mining farms and AI computing data centers. It takes a 380V-415V feed through a 160A 5P terminal box, feeds 24 C19 outlets protected by 24 independent 20A hydraulic-magnetic circuit breakers, and reports or switches every single outlet remotely over SNMP.
Key Features
- MPDU meter head with per outlet monitoring - read voltage, current, power, energy and power factor of each C19 socket, not just the total branch
- Per outlet remote switching - reboot a single miner, hash board shelf or GPU node from the NOC without touching the rack
- SNMP protocol support - integrates with Zabbix, PRTG, Grafana and DCIM platforms for alarms, trending and capacity planning
- 24 x C19 outlets (IEC 60320) - 16A/250V sockets for PSU shelves, immersion cooling pumps and AI server power cords
- 24 x 20A hydraulic-magnetic breakers - one breaker per outlet, hydraulic-magnetic trip curve holds steady at 45-65 C ambient inside containers
- 160A 5P terminal box - three phase, neutral and ground hard-wired input, low contact resistance at full 160A load
- Sheet metal shell - powder-coated steel chassis with ventilation slots, protects busbars and control boards from dust and impact
- Three-phase load balancing - outlets distributed across L1/L2/L3 to keep phase imbalance low on 380V and 415V systems
Technical Specifications
| Model | PDU-160A-24C19-SMART |
|---|---|
| Input Voltage | 380V - 415V three phase (3P+N+PE) |
| Rated Current | 160A per phase |
| Output Outlets | 24 x C19 (IEC 60320) |
| Metering | MPDU meter head, per outlet monitoring (V / A / W / kWh / PF) |
| Switching | Per outlet remote on/off and reboot |
| Communication | SNMP (RJ45), remote monitoring and alarm |
| Branch Protection | 24 x 20A hydraulic magnetic circuit breakers |
| Input Connection | 160A 5P terminal box |
| Frequency | 50/60Hz |
| Shell Material | Sheet metal, powder coated |
| Application | Cryptocurrency mining farm, AI computing data center |
| Test Items | Hi-pot, grounding, insulation resistance, aging and communication test - all PASS |
Typical Application
Mining containers and AI training clusters that need outlet-level visibility: identify a failing PSU before it trips a branch, cap power per rack tenant, or schedule outlet cycling during maintenance windows.
Customization Available
Outlet quantity and type (C13 / C19), current rating (32A / 63A / 125A / 160A), breaker brand, metering level (total, branch or outlet), communication options (SNMP / Modbus TCP / RS485) and shell size can all be customized. Send us your rack layout and single-line diagram for a matching quotation.
For pricing and datasheet, please contact us: E-MAIL: sales@bluetotech.com
