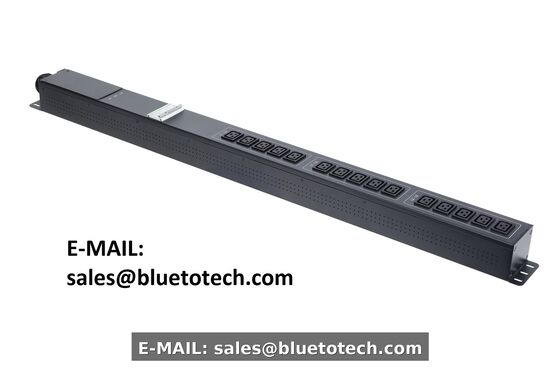

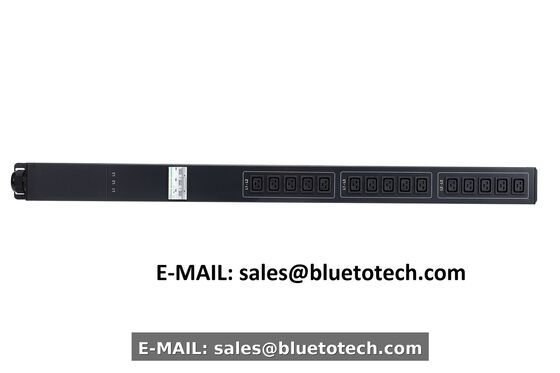

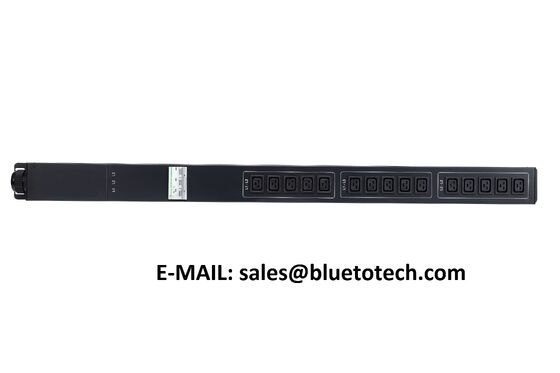

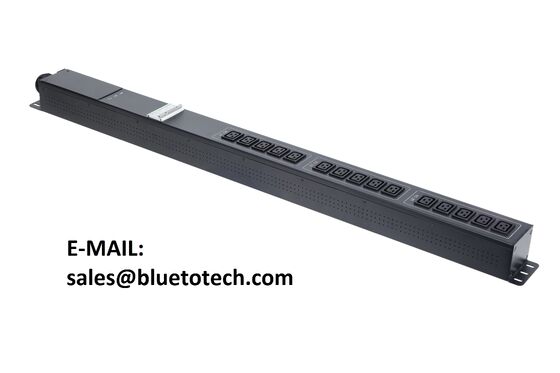

208V Delta Power Distribution Unit with 15 x C19 Outlets and 80A 4-Core Terminal Box PDU

208V 80A Delta 15 x C19 High Power PDU for Cryptocurrency Mining Farms

Product Pictures

E-MAIL: sales@bluetotech.com

This 208V three-phase DELTA power distribution unit is engineered for continuous high-current loads inside cryptocurrency mining containers and data halls. It distributes a single 208V DELTA feed into 15 C19 outlets through a 3P 80A UL circuit breaker, with an 80A 4-core terminal box (L L L G) as the input connection - no plug, no adapter, direct hard-wired installation.

Key Features

• 208V DELTA three-phase input - balanced 80A per-phase distribution for ASIC miner racks and hash boards
• 15 x C19 outlets - high-current IEC C19 sockets rated for 16A/250V, ready for C20 power cords of PSU shelves and immersion cooling pumps
• 3P 80A UL circuit breaker - three-pole main protection with UL recognized components for North American 208V sites
• 80A 4-core terminal box (L L L G) - three line conductors plus ground, hard-wired lugs for fixed installation, low contact resistance under full load
• Cold-rolled sheet metal shell - powder-coated steel chassis, rigid and flame retardant, protects busbars from dust and mechanical impact in mining containers
• Full-load thermal design - thick copper busbar and forced-air-friendly ventilation slots keep temperature rise under control during 24/7 operation
• Factory tested - 100% hi-pot, grounding continuity, insulation resistance and aging tests before shipment

Technical Specifications

Typical Application

Cryptocurrency mining farms, ASIC miner containers, immersion cooling racks, and any 208V three-phase site that needs a compact 80A branch distribution point with a large number of C19 outlets.

Customization Available

Outlet quantity and type (C13 / C19), breaker brand and rating, input terminal box or plug type, shell size, and rack-mount or wall-mount brackets can be customized to your container layout. Send us your single-line diagram and we will quote a matching configuration.
